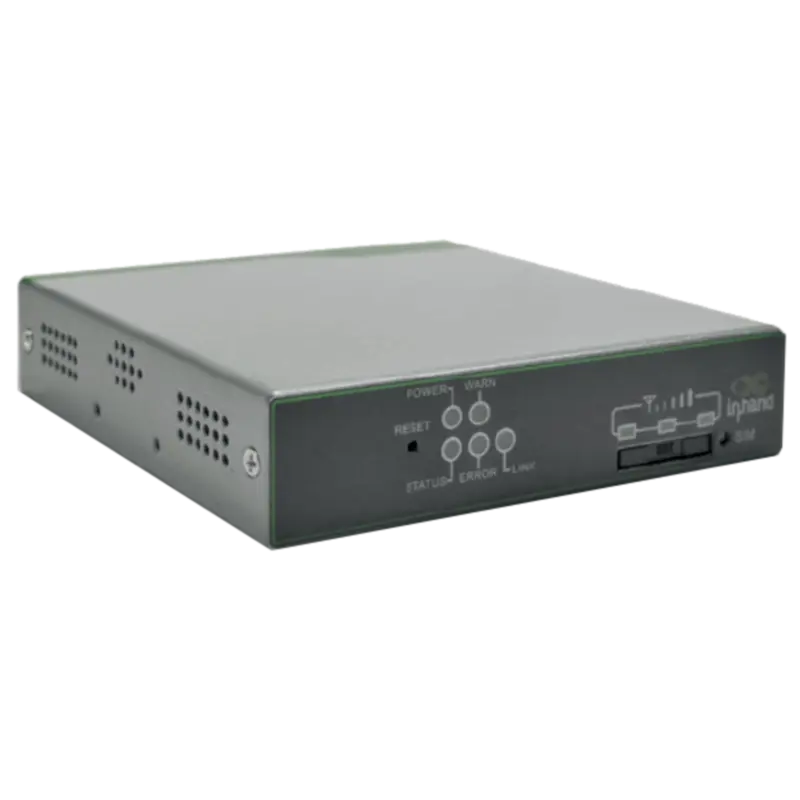

KET-MUM-100.4G is a device that integrates the latest generation of 4G-LTE modem, a router and an Ethernet output.
The modem - router KET-MUM-100.4G guarantees full freedom of installation due to the external antenna with magnetic base with 3m cable and the hooks for wall mounting adapter.
KET-MUM-100.4G is compatible with all Italian mobile operators.
| Protection Range | IP30 |
| Operative Temperature | -20 ÷ +70 °C |
| Storage Temperature | -40 ÷ +85 °C |
| Relative Humidity | MAX 95% not condensing |
| Dimensions | 100 x 23 x 100 mm (W x H x D) |
| Mounting | Wall/Panel mounting with supplied supports |
| Material | Metal |
| Supply Voltage | 9 ÷ 26 VDC; 100 ÷ 240 VAC with equipped power supply unit |
| Consumption | Standby: 80 mA ÷ 120 mA @ 12 V; Operating: 200 mA ÷ 220 mA @ 12 V; Peak: 240 mA @ 12 V |
| Supported Protocols | LAN/WAN |
| Communication Rate | 1 x 10/100 Mbps |
| Connectors types | RJ45 |
| Supported Protocols | 4G-LTE |
| Radio Frequency | 850 ÷ 2100 MHz |
| Antenna Type | SMA female |
| SIM Type | Mini-SIM |
| Services | Firewall, NAT, DMZ, VRRP |
| Referends Standard | EN61000-4, IEC60068-2-27, IEC60068-2-32, IEC60068-2-6 |
| Approvals | CE (EMC, LVD, RF, Temperature), FCC, CCC, PTCRB, IC, RCM |
| Security | Data: IPsec/L2TP/PPTP/GRE/OpenVPN/CA |
