Panel-mounted, three-phase power meter for current transformers

KET-PMT-247 is a panel-mounted energy meter for measuring energy and main electrical parameters in industrial and civil environments, with built-in RS485 ModBUS RTU communication.

It has 4 dry contact digital inputs, 2 relay outputs and 1 pulse output.

Interface with high-brightness LED/LCD display, parameter setting and push-button control, ideal for real-time energy monitoring systems. It can directly replace traditional power transmitters and measuring instruments.

The KET-PMT-247 can be used in all kinds of control systems, SCADA systems and energy management systems.

GENERAL SPECIFICATIONS

Protection Range	IP20
Operative Temperature	-25 ÷ +65 °C
Storage Temperature	-40 ÷ +80 °C
Relative Humidity	MAX 93% not condensing

CASE

Dimensions	90 x 90 x 77.8 mm (W x H x D); faceplate 96 x 96 mm; cutout 92 x 92 mm
Mounting	Panel
Electric Board Type	Industrial or switchboard

POWER SUPPLY

Supply Voltage	85 ÷ 265 VAC or 24 VDC (±20%) or 48 VDC (±20%)
Consumption	=<10 VA
Connectors types	Removable screw terminals

POWER METER

Insertion Types	Three phase, three or four wires
Connection	CT
Current Inputs	5 A @ 45 ÷ 65 Hz
Voltage Inputs	3x57.7/100 VAC (100 V), 3x220/380 VAC (400 V), 3x380/660 VAC (660 V)
Maximum Rated Current	Overload: 1.2 times the rated current (continuous); 10 times the rated current lasting for 1 second
Accuracy	Frequency: 0.05Hz \| Current, Voltage: 0.2 class \| Reactive power: l .0 class \| Reactive Electric energy: l .0 class \| Active power: 0.5 class \| Active electric energy: 0.5 class
Connections	Removable screw terminals
ESD Protection	Between Power supply / Switching Output / Current Input / Voltage Input and Transmitting / Communication / Pulse Output / switching input AC 2 kV 1min; Between Power supply, switching output, Current Input, voltage Input AC 2 kV 1min; Between Transmitting, Communication, Pulse Output, switching input AC 1kV 1 min.
Configuration	By keyboard

RS485 INTERFACE

Supported Protocols	ModBUS RTU
Communication Rate	38400, 19200, 9600, 4800 bps
Isolation	>100MO
Connectors types	Removable screw terminals

DIGITAL INPUTS

Channels

4 for drycontact

DIGITAL OUTPUTS

Channels

2 relay normally open contact outputs (230 VAC/3 A - 30 VDC/3 A); Pulse output: 10000imp/kWh (settable)

CERTIFICATIONS

Referends Standard	EN 62368-1-2014+A11:2017; EN61000-3-12:2011, EN 61000-3-3:2013; EN61000-6-1:2007; EN61000-6-3:2007/A1:2011/AC:2012
Approvals	CE

Ita

Eng

Scheda tecnica

Certificazione CE

Photo	Code	Description
	KET-TAA-000.JS	Small openable current transformers
	KET-TAA-000.A	Openable current transformers for cables and busbars
	KET-GZE-310	Advanced X-Monitor gateway with 3G/4G/NB-IoT/LTE-M modem and Wi-Fi™

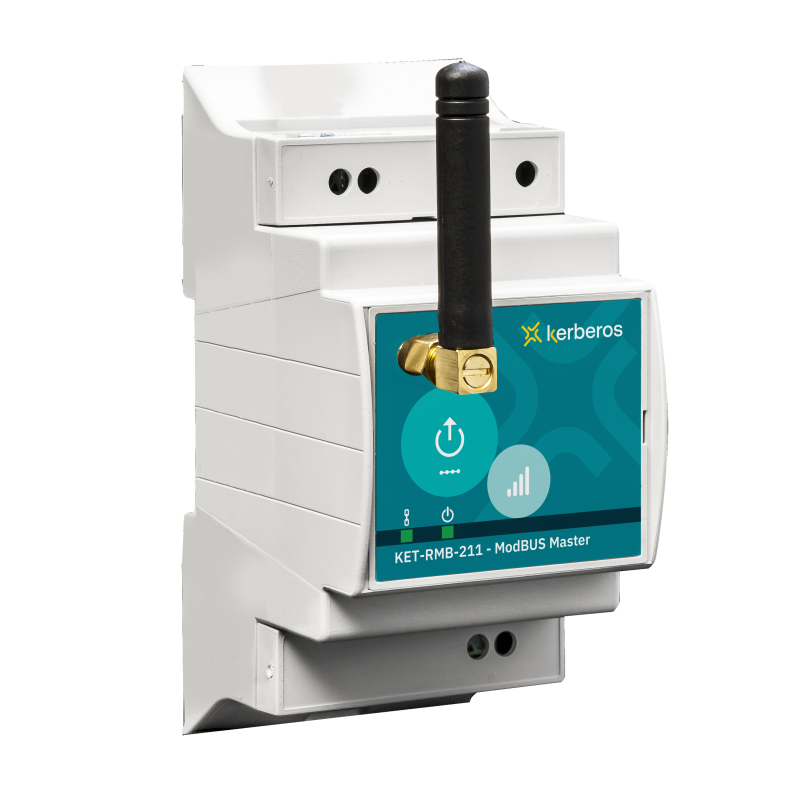

	KET-RMB-211	Master ModBUS RTU Wireless
